Payment & Shipping Terms:
|Product Name:||Reverse Osmosis System||Capacity:||250L~10000L/Customized|
|Application:||Water Purification||RO Membrane:||MR|
|Voltage:||380 Volt /Customized||Water Yield:||0.5-30(m3 /h )|
|Working Water Tempterature (°C):||5°C - 35°C||Minimum Water Inflow (m3 /h ):||2.0-40 (m3 /h)|
10000L Industrial Reverse Osmosis System,
250L Industrial Reverse Osmosis System,
10000L Industrial RO System

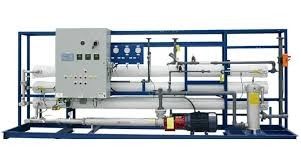

10000L Industrial Reverse Osmosis System
Description Of RO System
Reverse Osmosis is a technology used to remove a large majority of pollutants from water by passing the water through a semi-permeable membranes under pressure.
The water passed through the Reverse Osmosis membranes through the high pressure pump leaves 95-99% of the dissolved salts on the membrane and these contaminants are expelled from the concentrated waste water out of the membrane. The pressure required here varies by the salt concentration of the feed water. The higher the polluting concentration in the feed water, the higher pressure is required to overcome the osmotic pressure. The design is made by determining the appropriate equipment and working parameters in the line of the feed water characterization and the desired purified water quality.
|Applicable Industries:||Hotels, Manufacturing Plant, Machinery Repair Shops, HOME USE, Printing Shops, Construction works , Energy & Mining|
|Material:||Standard Wooden, Stainless Teel|
|Warranty:||1 YEAR, One year|
|After-sales Service Provided:||Video technical support, Free spare parts, Online support|
|Certification:||CE ISO GMP|
|Water Yield:||0.5-30(m3 /h )|
|Working Water Tempterature (°C):||5-35|
|Minimum Water Inflow (m3 /h ):||2.0-40 (m3 /h )|
|Desalted Water (%)||98%|
Feature Of Industrial Reverse Osmosis System
The design of the system is according to the municipal water quality requirements. System configuration and setting can completely meet the requirement in water conditions, the energy-saving, simple operation and safety for the principle, And guarantee system can long-term and stable operation.
Raw water - raw water tank (user self-provided) - raw water pump- multi-media filter- activated carbon filter- precision filter, the reverse osmosis device - pure water storage tank (user self-provided)
RO pure water system
1. Import parts over 90%,water conductivity<10μm/cm.
2. Meet GMP Standard.
3. Will be test before shipping.
Reverse Osmosis systems are used for
• Production of fresh water from sea water,
• Increasing water quality in industrial enterprises,
• Obtaining water at the desired quality in industrial and drinking water,
• Preventing the formation of boiler stones in boilers,
• Regaining water in the recovery systems of wastewater,
• Obtaining feed-water of Ultra Purified water systems
• In sectors like Food, Textile, Glass, Automotive, Cosmetics, Pharmaceuticals, Iron and Steel.
One Stage Finished Water Conductivity
Tow Stage Finished Water Conductivity
EDI System Finished Water Conductivity
Raw Water Conductivity
Warranty: One year since the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by un-properly operation, then the Seller would offer the new parts for free.New Model High Efficient Tilting Vacuum Emulsifying Mixer Machine For Cosmetic
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
