Product Details:
Payment & Shipping Terms:
|
Product Name: | Reverse Osmosis System | Capacity: | 6000L,7000L/Customized |
---|---|---|---|
Application: | Water Purification | Water Yield: | 0.5-30(m3 /h ) |
Working Water Tempterature (°C): | 5-35 | Minimum Water Inflow (m3 /h ): | 2.0-40 (m3 /h) |
High Light: | 7000L Industrial Reverse Osmosis System,6000L Industrial Reverse Osmosis System,7000L Brackish Water RO System |

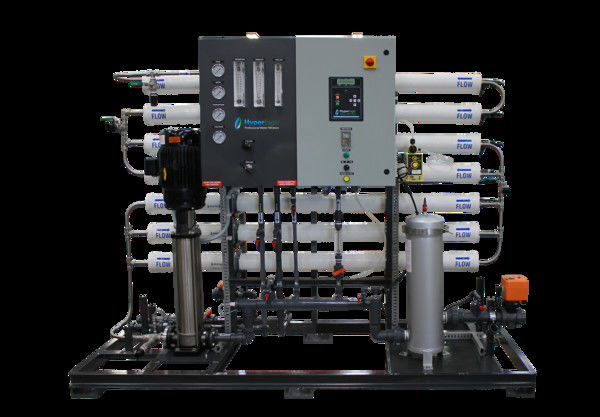

7000L 8000L Brackish Water Industrial Reverse Osmosis System
Description Of RO System
Reverse Osmosis is a technology used to remove a large majority of pollutants from water by passing the water through a semi-permeable membranes under pressure.
The water passed through the Reverse Osmosis membranes through the high pressure pump leaves 95-99% of the dissolved salts on the membrane and these contaminants are expelled from the concentrated waste water out of the membrane. The pressure required here varies by the salt concentration of the feed water. The higher the polluting concentration in the feed water, the higher pressure is required to overcome the osmotic pressure. The design is made by determining the appropriate equipment and working parameters in the line of the feed water characterization and the desired purified water quality.
Specification
Applicable Industries: | Hotels, Manufacturing Plant, Machinery Repair Shops, HOME USE, Printing Shops, Construction works , Energy & Mining |
Material: | Standard Wooden, Stainless Teel |
Warranty: | 1 YEAR, One year |
After-sales Service Provided: | Video technical support, Free spare parts, Online support |
Application: | Water Purification |
Capacity: | 250L~10000L/Customized |
Voltage: | 380V /Customized |
RO membrane: | MR |
Certification: | CE ISO GMP |
Water Yield: | 0.5-30(m3 /h ) |
Working Water Tempterature (°C): | 5-35 |
Minimum Water Inflow (m3 /h ): | 2.0-40 (m3 /h ) |
Desalted Water (%) | 98% |
Feature Of Industrial Reverse Osmosis System
The design of the system is according to the municipal water quality requirements. System configuration and setting can completely meet the requirement in water conditions, the energy-saving, simple operation and safety for the principle, And guarantee system can long-term and stable operation.
Procedure:
Raw water - raw water tank (user self-provided) - raw water pump- multi-media filter- activated carbon filter- precision filter, the reverse osmosis device - pure water storage tank (user self-provided)
water distillation machine RO system application:
The daily drinking water for community, school, hotel, factories etc
Desalination of water used in production techniques
Water used in beverage ,food industry etc
Mobile working organizations such as ocean voyages, drilling units, field exploration etc
Daily drinking water used in islands, military posts, high saline and alkaline lands, sea water encroached areas, also can be applied in industry, electronic field, food etc
Technical Paramete
Model |
Capacity (T/H) |
Power (KW) |
Recovery (%) |
One Stage Finished Water Conductivity (μs/cm) |
Tow Stage Finished Water Conductivity (μs/cm) |
EDI System Finished Water Conductivity (μs/cm) |
Raw Water Conductivity (μs/cm) |
RO-500 | 0.5 | 0.75 | 50 | ≤10 | 2-3 | ≤0.5 | ≤300 |
RO-1000 | 1.0 | 2.2 | 75 | ||||
RO-2000 | 2.0 | 4.0 | 75 | ||||
RO-3000 | 3.0 | 5.5 | 75 | ||||
RO-5000 | 5.0 | 7.5 | 75 | ||||
RO-6000 | 6.0 | 7.5 | 75 | ||||
RO-10000 | 10.0 | 11.0 | 75 | ||||
RO-20000 | 20.0 | 15.0 | 75 |
RO pure water system
1. Import parts over 90%,water conductivity<10μm/cm.
2. Meet GMP Standard.
3. Will be test before shipping.
