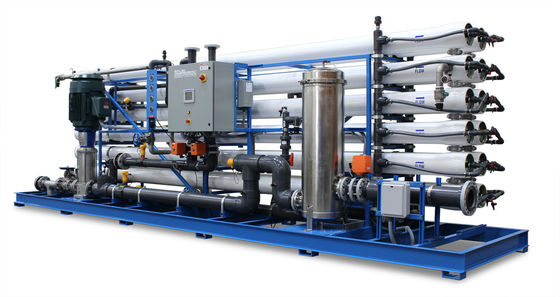

Carbon Steel 30tph 20m3 Reverse Osmosis Desalination machine

I'm Online Chat Now

Carbon Steel 30tph 20m3 Reverse Osmosis Desalination machine

Detailed Product Description
Capacity:: 30tph Salt Rejection Rate:: 99.0%
Frame:: Carbon Steel Piping:: Stainless Steel
Specification: 20m3 Membrane Housing: Fiber Glasss
High Light:

20m3 Reverse Osmosis Desalination Machine

,

30tph Reverse Osmosis Desalination Machine

,

Carbon Steel Ro Filtration Membrane

Reverse Osmosis Desalination Water System
1. System description
The Reverse Osmosis Desalination Water System removes the impurities like dissolved salts, colloid, bacteria, viruses, organics from pretreated water, to meet the production standard. The other systems also include pretreated system like MMF, UF, water sofener etc. Vantage RO systems serves process/waste water generation industries such as Power, General Industry, Food and Beverage, Pharmaceutical, Microelectronics, Solar, Data Centers.

2. Features:
1) Removal of dissolved salts, 97%~99%
2) Recovery rate up to 70~85%
3) Get rid of the dissolved salts, colloids, bacteria, viruses and BOD
4) Low operation cost and less maintenance
5) RO for Power and Energy Industry, Water Recycling & Reuse, Food & Drinking Wateter.
6) Complete factory support for any and all inquiries
7) Drawings and manuals available by contacting our sales representative

3. Technical process
1) Multi-media filter: Sand filter and Activated carbon filter
Sand filter is used to get rid of suspended solids, sludge, colloid in the water, and the ACF has the function of absorbtion and filtration to the organics, bacteria and chlorine etc.
2) 1st stage Reverse osmosis system and 2nd stage industrial RO water purification system
RO system is the core of whole Ultrapure water system, through the RO membrane, about 98% of dissolving salts can be removed from the raw water, producing high purity wate with less than 5μs.
3) EDI (Electrodeionization)
This system will greatly improve the pure water to ultrapure water, the water quality can reach to 18MΩ

3. General RO Technical Parameters:
Reverse Osmosis Desalination Water System

  Unit Feedwater
Product water (1st stage RO)

Product water (2nd stage RO)

Conductivity

μs/cm

≤700μs/cm

≤30μs/cm

≤10 μs/cm

Temature

ºC

25

25

25

PH

7.00

5.5~6.5

6.5~7.0

SDI

≤5

≤1

free chlorine
PPM

<0.5

<15PPB

<5PPB

COD
PPM <3 approaches 0
approaches 0
TOC PPM <2 <0.5
<0.5

IRON
PPM < 0.1 <3PPB
<1PPB
manganese
PPM
< 0.05 <3PPB
<1PPB

SO2

PPM

<20PPM

<50-150PPB
<50PPB


4. Applcation:
1) Desalination: Sea water, brackish water etc.
2) Electronics: wafer fab, semiconductors, microelectronics, photovoltaics etc.
3) Chemicals: petrochemicals, paper, cosmetics, plating, coating
4) Power: power plant, coal-powered plant, biomass energy
5) Food&Beverage: bottled water, soft drink, tea, coffee, wine&brewery, milk&dairy
6) Treatment and recycle of rinse waters used in electroplating processes
7) automotive manufacturing (Reverse Osmosis Desalination Water System)

5. Our service
1) Technical consultation--get to know customer's demand
2) Solution Design---Fully satisfy customer's water quality requirements
3) System integration---material selection, components assembly
4) Transportation & Site installation
5) Training & Maintenance



Why Choose us?
1) Professional consulting service
2) Optimized solution design
3) Lean fabrication and installation
4) Quick after-sale service
5) ISO 9001 certification & SGS
6) Strong technical and engineering team

Please provide us the feedwater quality specifications and the output water requirements with water flow,
we will do best to create a reliable and cost-effective solution for your specific needs.
