|Product Name:||UltraFiltration Membrane||Application:||For Wastewater Treatment Plant Equipment|
|Product Housing:||U-PVC Material||Membrane Material:||PVDF/PAN/PVC Material|
|Product Size:||4''/ 6''/ 8''/ 10''||Working Temperature:||5~45℃|
|Membrane Pore Size:||0.01~0.1μm||Bacterial Remove Rate:||99.99%|
|PH Range:||2~12||Designed Water Flow:||0.2~5 T/ H|

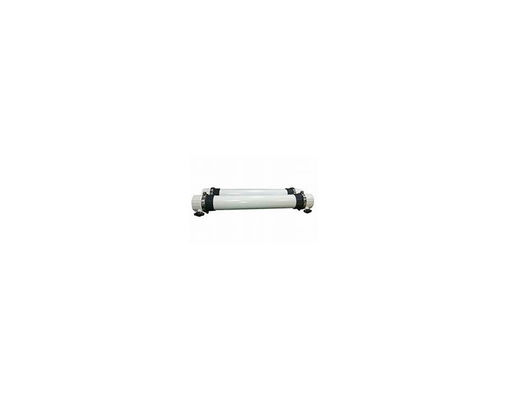

10'' uf membrane module,
8'' uf membrane filter
UltraFiltration backwashing cleaning process:
1.Configuration of Backwashing System
Backwashing system includes backwashing water tank, backwashing pump, and NaClO dosing device.
2.Backwashing Water Tank
Permeate water is usually used for backwashing. So a backwashing water tank is not essential and production water tank can be used directly.
4.Backwash Dosing Device
Install a dosing device separately can avoid bacteria multiplication.
There are two conventional dosing forms: one is continuous addition of 1-5ppm NaClO to the feed water; the other is continuous addition of 10-15ppm NaClO in backwashing process.
Dosing device of NaClO includes the following equipments .
low fiber UF membrane module for water treatment equipment
