Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane

I'm Online Chat Now

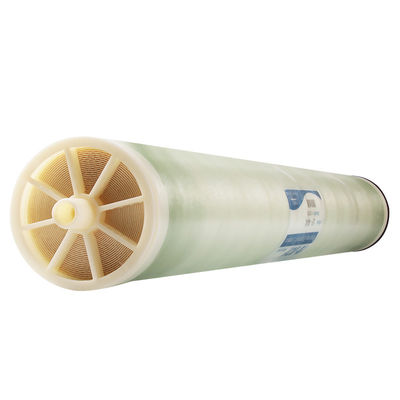

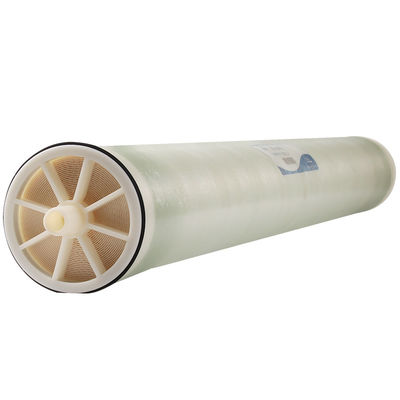

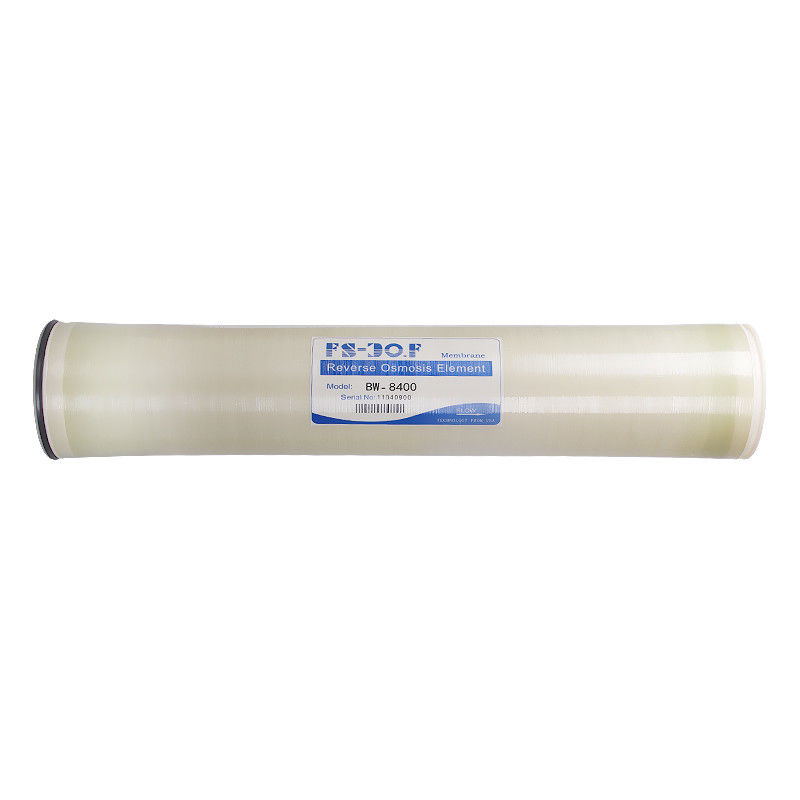

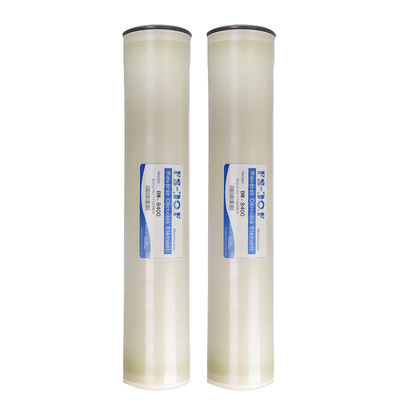

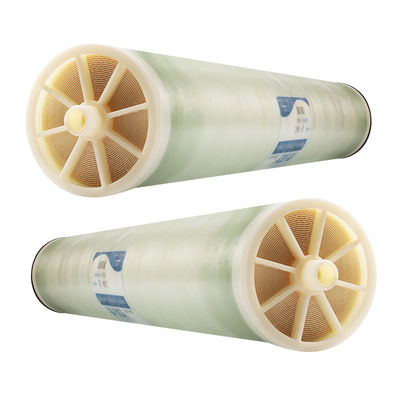

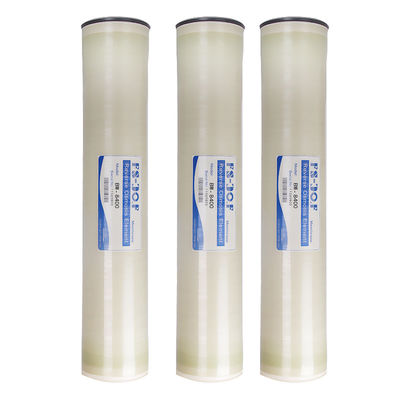

Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane

Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane
Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane

Large Image :  Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane

Product Details:

Brand Name: OEM
Model Number: 8040

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: export standard package, one pc in one plastic bag and carton, 20pcs in one pallet
Delivery Time: 3-7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2,500 sets per month
Detailed Product Description
Type: Water Filter Parts After-sales Service Provided: None
Warranty: None Application: Commercial
Power Source: Electric Color: White
Product Name: Industrial Ro Membrane Capacity: 10500G(depending On Different Models)
Customized: Offer OEM&ODM Services Pore Diameter/pore Size: 0.0001 Micron
Raw Water Limits: ≤ 2000PPM Desalination Rate: 99.5%
Use: Commercial Industry Ro Membrane Sheet: Import From American
Port: Shanghai
High Light:

10500G ro membrane replacement

,

0.0001 Micron ro water membrane

Drinking Water 10500G 0.0001 Micron Reverse Osmosis Membrane

Introduction



Reverse osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions, molecules and larger particles from drinking water.

Reverse osmosis can remove many types of dissolved and suspended species from water, including bacteria, and is used in both industrial processes and the production of potable water.



Uses the most advanced membrane film technology and manufacturing processes

Provides high rejection stability even with high TDS manufactured in our ISO 9001:2008 Certified Facilities,

Less fouling, Less frequency cleaning and More consistent

100% Performance and Quality Tested

Backed by our Experienced Technical Support Staff

High Quality for Consistent and Reliable Performance

Standard dimensions to fit in commonly available housings

Lower consumption of chemical and longer life



Brackish Water (BW) series include 8-inch membrane elements and 4-inch ones. This series of membrane element have large effective filtration area, and wider inflow path. Not only does it increase the water yield, but diminish the frequency of cleaning, saving energy and cost. BW series obtain the highest quality of water at the lowest cost.



BW series membrane elements are suitable for desalination of surface water, underground water and low-pollution water source with TDS<6000ppm and mainly applied in pure water, in food and pharmaceuticals industry, desalted water in power station, boiler feed water, filtering fees water system and purification system of river and under-ground water.



Parameters



Type

 Model

Performance

Structure Parameter

Stable rejection





/%

Average permeate flux





/gpd(m3/d)

Effective membrane area



/ft2

Flowpath Dia





/mil

Inner pipe Dia





/mm

BW Series

BW-8040

99.5

10000(37.9)

380

31

28.7

BW-8040-400

99.5

10600(40.1)

400

30

28.7

BW-4040

99.5

2400(9.1)

90

31

19

Testing conditions

Testing Pressure

225psi(1.55 MPa)

Temperature of testing

25 ℃

Testing Concentration(NaCl)

2000 mg/L

pH Value of testing

7.5

Recovery of single membrane element

20%

Operation limits and conditions:

Max. Working Pressure

600 psi(4.14 MPa)

Max. Feedwater Flow

75 gpm(17 m3/h)(8040)

16 gpm(3.6 m3/h)(4040)

Max inflow temperature

45℃

Max flow SDI15

5

Residual Chlorine Concentration of feed water

<0.1 mg/L

pH range of Feed water durng Continuous Operation

3~10

pH range of feed water during chemical cleaning

2~12

Max, Pressure Drop of Single membrane element

15 psi(0.1 MPa)



Specificationsro 40 40 membrane

1. Model: -8040
2. Reject: 99.5%
3. Average Permeate: 10500GPD(8.7m3/d)
4. Active Membrane Area: 380ft2 (7.9m2)



PRODUCT NOTES:



- Proper start-up of reverse osmosis water treatment system is essential to prepare the industrial membrane elements for operating service and to prevent membrane damage due to overfeeding or hydraulic shock.



- Before initiating system start-up procedures, membrane pre-treatment, loading of the membrane elements, instrument calibration and other system checks should be completed.



- During prolonged system shutdowns, it is recommended that the  membrane elements be immersed in a preservative solution. This is to prevent biological growth.



Application of ro membrane

Industrial water treatment plant

boiler water

civilian water treatment water

Medical electronics industry

metallurgy chemical industry

food processing

Liquor and beverages manufacturer organ

School water

Water/industrial wastewater reuse
