GMP Standard 2000TPH Industrial Ro Plant For Water Purification

I'm Online Chat Now

GMP Standard 2000TPH Industrial Ro Plant For Water Purification

GMP Standard 2000TPH Industrial Ro Plant For Water Purification
GMP Standard 2000TPH Industrial Ro Plant For Water Purification

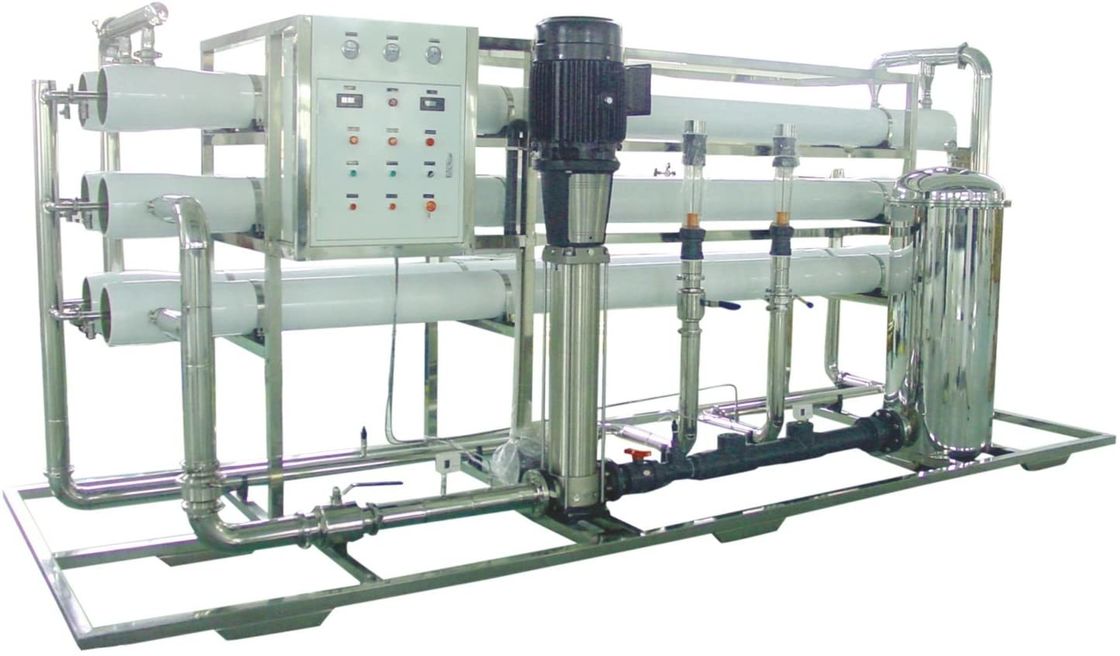

Large Image :  GMP Standard 2000TPH Industrial Ro Plant For Water Purification

Product Details:

Place of Origin: China
Brand Name: MR
Certification: CE ISO GMP

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 pcs in single carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Product Name: Reverse Osmosis System Application: Water Purification
RO Membrane: MR Voltage: 380V /Customized
Water Yield: 0.5-30(m3 /h ) Working Water Tempterature (°C): 5-35
Minimum Water Inflow (m3 /h ): 2.0-40 (m3 /h) Feature: Energy-saving
High Light:

2000TPH Industrial Ro Plant

,

380V Industrial Ro Plant

,

10000L Water Purification Ro Plant

GMP Standard 2000TPH Industrial Ro Plant For Water Purification



Description Of RO System
 RO water purification system is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure, the use of reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant.



Specification

Applicable Industries: Hotels, Manufacturing Plant, Machinery Repair Shops, HOME USE, Printing Shops, Construction works , Energy & Mining
Material: Standard Wooden, Stainless Teel
Warranty: 1 YEAR, One year
After-sales Service Provided: Video technical support, Free spare parts, Online support
Application: Water Purification
Capacity: 250L~10000L/Customized
Voltage: 380V /Customized
RO membrane: MR
Certification: CE ISO GMP
Water Yield: 0.5-30(m3 /h )
Working Water Tempterature (°C): 5-35
Minimum Water Inflow (m3 /h ): 2.0-40 (m3 /h )
Desalted Water (%) 98%


 Feature Of Industrial Reverse Osmosis System
(1). Occupy little space, easy to operate, wide application range;
(2). operation cost is low, acid and alkali consumption is low, no secondary pollution;
(3). Reverse osmosis desalting rate ≧ 99%, machine desalting rate ≧ 97%, 98% of organic and bacteria can be removed;
(4). Finished water under good electronic conductivity, one stage ≦10u s/cm, two stage around 2~3u s/cm, EDI ≦ 0.5u s/cm(based on raw water ≦ 300 u s/cm;
(5). High operation automation degree. It is unattended. The machine will automatically stop in case of no water. Timed flushing of front filtering materials by automatic controller. Automatic flushing of reverse osmosis film by IC. Online display of raw water and pure water electronic conductivity;
(6). Imported parts account for over 90%.

Procedure:
Raw water - raw water tank (user self-provided) - raw water pump- multi-media filter- activated carbon filter- precision filter, the reverse osmosis device - pure water storage tank (user self-provided)

water distillation machine RO system application:

The daily drinking water for community, school, hotel, factories etc

Desalination of water used in production techniques

Water used in beverage ,food industry etc

Mobile working organizations such as ocean voyages, drilling units, field exploration etc

Daily drinking water used in islands, military posts, high saline and alkaline lands, sea water encroached areas, also can be applied in industry, electronic field, food etc



RO pure water system
1. Import parts over 90%,water conductivity<10μm/cm.
2. Meet GMP Standard.
3. Will be test before shipping.

Technical Parameter

Model

Capacity

(T/H)

Power

(KW)

Recovery (%)

One Stage Finished Water Conductivity

(μs/cm)

Tow Stage Finished Water Conductivity

(μs/cm)

EDI System Finished Water Conductivity

(μs/cm)

Raw Water Conductivity

(μs/cm)

RO-500TPH 0.5 0.75 50 ≤10 2-3 ≤0.5 ≤300
RO-1000TPH 1.0 2.2 75
RO-2000TPH 2.0 4.0 75
RO-3000TPH 3.0 5.5 75
RO-5000TPH 5.0 7.5 75
RO-6000TPH 6.0 7.5 75
RO-10000TPH 10.0 11.0 75
RO-20000TPH 20.0 15.0 75


Warranty: One year since the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by un-properly operation, then the Seller would offer the new parts for free.New Model High Efficient Tilting Vacuum Emulsifying Mixer Machine For Cosmetic
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.



After-sale Service for RO system:
(1) 100% factory tested before shipment
(2) 1 Year's Quality Warranty
(3) 2 Years of trouble free service offered
(4) Solve problems within 24 hours
