Modularity Industrial Ro System Big Size Reverse Osmosis Tank Equipment

I'm Online Chat Now

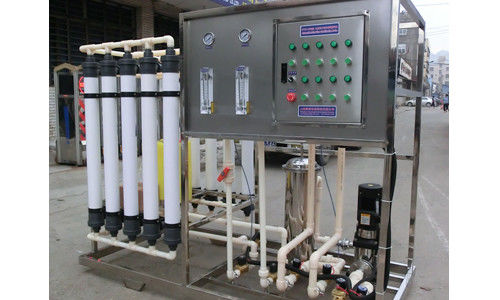

Modularity Industrial Ro System Big Size Reverse Osmosis Tank Equipment

Modularity Industrial Ro System Big Size Reverse Osmosis Tank Equipment
Modularity Industrial Ro System Big Size Reverse Osmosis Tank Equipment

Large Image :  Modularity Industrial Ro System Big Size Reverse Osmosis Tank Equipment

Product Details:

Place of Origin: China
Brand Name: MR
Certification: CE ISO GMP

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 pcs in single carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Product Name: Reverse Osmosis System RO Membrane: MR
Water Yield: 0.5-30(m3 /h ) Working Water Tempterature (°C): 5-35
Voltage: 380V /Customized Capacity: 250L~10000L/Customized
Material: Standard Wooden, Stainless Steel Applicable Industries: Hotels, Manufacturing Plant, Etc.
High Light:

Modularity Industrial Ro System

,

PLC control Industrial Ro System

,

Modularity Industrial Reverse Osmosis System

Modularity Industrial Ro System Big Size Reverse Osmosis Tank Equipment



Industrial Stainless Steel Ro System Water Treatment Purifier And Big Size Reverse Osmosis Tank Equipment



Introduction:

1. Reverse osmosis is a kind of membrane separation technology developed since the 1980s.

2. It mainly uses the osmosis principle if semi-transparent membrane. A pressure that is called reverse osmosis.

3. The device that is composed of reverse osmosis components is called reverse osmosis device.



Specification

Applicable Industries: Hotels, Manufacturing Plant, Machinery Repair Shops, HOME USE, Printing Shops, Construction works , Energy & Mining
Material: Standard Wooden, Stainless Teel
Warranty: 1 YEAR, One year
After-sales Service Provided: Video technical support, Free spare parts, Online support
Application: Water Purification
Capacity: 250L~10000L/Customized
Voltage: 380V /Customized
RO membrane: MR
Certification: CE ISO GMP
Water Yield: 0.5-30(m3 /h )
Working Water Tempterature (°C): 5-35
Minimum Water Inflow (m3 /h ): 2.0-40 (m3 /h )
Desalted Water (%) 98%


Feature Of Industrial Reverse Osmosis System

1. Modularity design, compact structure.

2. System can choose thermal disinfection RO membrane and thermal disinfection EDI; the whole system can realize on-line hot water disinfection.

3. Double softener can achieve series connections by using the valve group and generation alternatively.

4. Feed water pump.1st stage high pressure pump and 2nd stage high pressure pump are all controlled by frequency.

5. System terminal water production uses a dual supply mode

6. Using the middle water storage tank as the buffer tank to realize cleaning on-line, dispensing with separate cleaning system.

7. Making stainless steel tube directly tensile bending in the pipeline as far as possible, avoid welding.

8. For the connection of the pipeline and the spare parts, it adopts the arc to protect the automatic welding track, and to ensure the welding quality

9. Control system: PLC automatic control technology

10. Recording mode: You can choose the paperless recorder for paperless records and also the paper record the key parameters in real time

Procedure:
Raw water - raw water tank (user self-provided) - raw water pump- multi-media filter- activated carbon filter- precision filter, the reverse osmosis device - pure water storage tank (user self-provided)



Primary and secondary reverse osmosis+EDI

1. Applied in areas where the salinity of raw water is high;

2. Good electric conductivity of water produced;

3. Low investment;

4. Low operating cose;

5. Good stability.

Reverse Osmosis systems are used for
• Production of fresh water from sea water,
• Increasing water quality in industrial enterprises,
• Obtaining water at the desired quality in industrial and drinking water,
• Preventing the formation of boiler stones in boilers,
• Regaining water in the recovery systems of wastewater,
• Obtaining feed-water of Ultra Purified water systems
• In sectors like Food, Textile, Glass, Automotive, Cosmetics, Pharmaceuticals, Iron and Steel.

Technical Parameter

Model

Capacity

(T/H)

Power

(KW)

Recovery (%)

One Stage Finished Water Conductivity

(μs/cm)

Tow Stage Finished Water Conductivity

(μs/cm)

EDI System Finished Water Conductivity

(μs/cm)

Raw Water Conductivity

(μs/cm)

RO-500 0.5 0.75 50 ≤10 2-3 ≤0.5 ≤300
RO-1000 1.0 2.2 75
RO-2000 2.0 4.0 75
RO-3000 3.0 5.5 75
RO-5000 5.0 7.5 75
RO-6000 6.0 7.5 75
RO-10000 10.0 11.0 75
RO-20000 20.0 15.0 75



Details specification:

1. High reliability of the ultrafiltration membrane with a breaking load of at least 10 bar with the provision of the official manufacturer's specification for the ultrafiltration membrane / module;
2. Fully automated system operation is including: filtration; direct flushing with source water with air injection; backwash with purified water; waiting (when filling the storage tank of purified water);
3. A chemical flushing unit (CIP) for cleaning and disinfection of membranes, which is performed automatically and initiated using the transmembrane pressure threshold value sensor;
4. Automatic dosing of the coagulant into the source water in proportion to the flow rate of the source water with a dosing range from 0.1 to 5.0 mg / l in terms of the metal content in the mineral coagulation reagent;
5. Reliable automatic valves for controlling system flows based on pneumatically actuated valves and a low-voltage electromagnetic control system for valve status;
6. A high degree of disinfection of at least 99.99% and a residual turbidity of purified water of no more than 0.1 mg / l;



Technical characteristics

1. Modularity design, compact structure.

2. System can choose thermal disinfection RO membrane and thermal disinfection EDI; the whole system can realize on-line hot water disinfection.

3. Double softener can achieve series connections by using the valve group and generation alternatively.

4. Feed water pump.1st stage high pressure pump and 2nd stage high pressure pump are all controlled by frequency.

5. System terminal water production uses a dual supply mode

6. Using the middle water storage tank as the buffer tank to realize cleaning on-line, dispensing with separate cleaning system.

7. Making stainless steel tube directly tensile bending in the pipeline as far as possible, avoid welding.

8. For the connection of the pipeline and the spare parts, it adopts the arc to protect the automatic welding track, and to ensure the welding quality

9. Control system: PLC automatic control technology

10. Recording mode: You can choose the paperless recorder for paperless records and also the paper record the key parameters in real time
