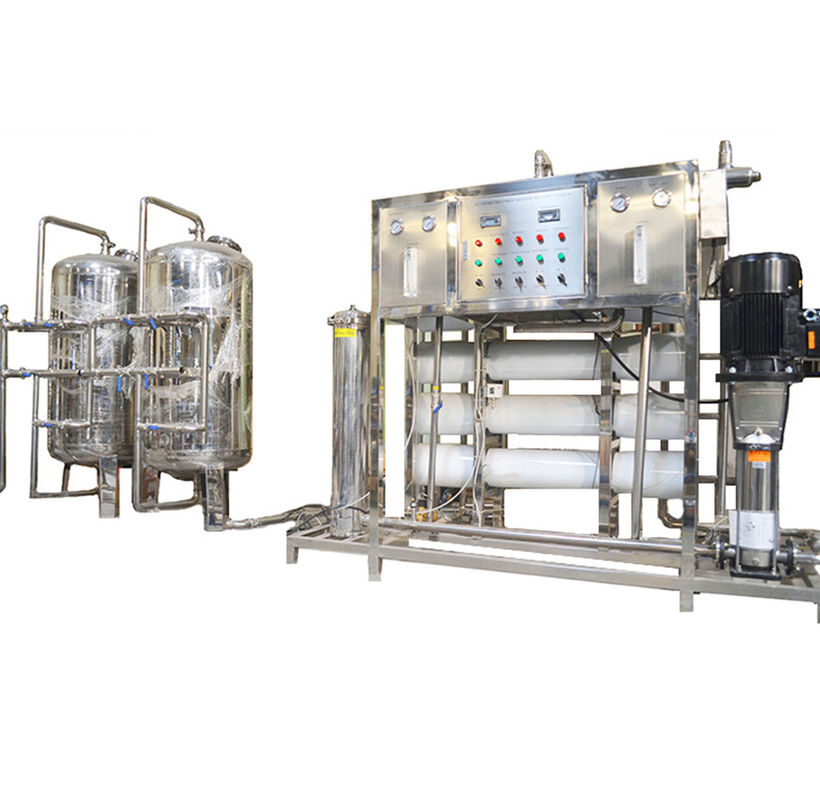

Sea Water 250L GMP PLC control Industrial Reverse Osmosis System

I'm Online Chat Now

Sea Water 250L GMP PLC control Industrial Reverse Osmosis System

Sea Water 250L GMP PLC control Industrial Reverse Osmosis System
Sea Water 250L GMP PLC control Industrial Reverse Osmosis System

Large Image :  Sea Water 250L GMP PLC control Industrial Reverse Osmosis System

Product Details:

Place of Origin: China
Brand Name: MR
Certification: CE ISO GMP

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 pcs in single carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Product Name: Industrial Reverse Osmosis System Capacity: 250L~10000L/Customized
Application: Water Purification Voltage: 380V /Customized
Water Yield: 0.5-30(m3 /h ) Minimum Water Inflow (m3 /h ): 2.0-40 (m3 /h)
Working Water Tempterature (°C): 5-35 Desalted Water (%): 98
High Light:

GMP Industrial Reverse Osmosis System

,

PLC control Industrial Reverse Osmosis System

,

250L RO System

Sea Water 250L GMP PLC control Industrial Reverse Osmosis System



Sea Water 0.5m3 Per Hour Industrial RO Water Treatment Plant



Description Of RO System
Reverse osmosis (R/O) water treatment system is one of the highest technologies in
modern pure water purification, raw water such as tap water, well water, borehole water, brackish water, sea water etc. Through the pretreatment then pass the reverse osmosis system, it can remove 98%colloid, solid, turbidity, chlorine, and odor. The pure water completely in line with international standards for drinking water. It is a key of water filtration equipment.



Specification

Applicable Industries: Hotels, Manufacturing Plant, Machinery Repair Shops, HOME USE, Printing Shops, Construction works , Energy & Mining
Material: Standard Wooden, Stainless Teel
Warranty: 1 YEAR, One year
After-sales Service Provided: Video technical support, Free spare parts, Online support
Application: Water Purification
Capacity: 250L~10000L/Customized
Voltage: 380V /Customized
RO membrane: MR
Certification: CE ISO GMP
Water Yield: 0.5-30(m3 /h )
Working Water Tempterature (°C): 5-35
Minimum Water Inflow (m3 /h ): 2.0-40 (m3 /h )
Desalted Water (%) 98


Ro machine advantage?
1). RO water purification system can produce pure water continuously and highly automatic
2). No need chemical to regenerate, easy operation
3). RO system membranes are imported USA DOW membranes.
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can wash automatically and reduce pollution
6). Water shortage protection for multi-stage pump
7). Production water conductivity meter can test the monitoring quality on line continuously.
8). Low operation Cost and Long life span
9). It is PLC program controller
10). Easily control and Maintain
11). Auto membrane flushing
12). Environmental protection, Low power consumption
13)  Auto flush/backwash
14)  Low /high pressure protection



Installation:

Raw water pump+silica sand filter+active carbon filter+softener + micron filter+high pressure pump+RO system.

Plant process:

1. Raw water pump-- provide the pressure to silica sandfilter/active carbon filter

2. Silica Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid and so on

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on

4, Softener--reduce the hardness of water 4. Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.

5. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).

6. RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.



RO pure water system
1. Import parts over 90%,water conductivity<10μm/cm.
2. Meet GMP Standard.
3. Will be test before shipping.

Reverse Osmosis systems are used for
• Production of fresh water from sea water,
• Increasing water quality in industrial enterprises,
• Obtaining water at the desired quality in industrial and drinking water,
• Preventing the formation of boiler stones in boilers,
• Regaining water in the recovery systems of wastewater,
• Obtaining feed-water of Ultra Purified water systems
• In sectors like Food, Textile, Glass, Automotive, Cosmetics, Pharmaceuticals, Iron and Steel.

Technical Parameter

Model

Capacity

(T/H)

Power

(KW)

Recovery (%)

One Stage Finished Water Conductivity

(μs/cm)

Tow Stage Finished Water Conductivity

(μs/cm)

EDI System Finished Water Conductivity

(μs/cm)

Raw Water Conductivity

(μs/cm)

RO-500 0.5 0.75 50 ≤10 2-3 ≤0.5 ≤300
RO-1000 1.0 2.2 75
RO-2000 2.0 4.0 75
RO-3000 3.0 5.5 75
RO-5000 5.0 7.5 75
RO-6000 6.0 7.5 75
RO-10000 10.0 11.0 75
RO-20000 20.0 15.0 75


Warranty: One year since the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by un-properly operation, then the Seller would offer the new parts for free.New Model High Efficient Tilting Vacuum Emulsifying Mixer Machine For Cosmetic
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.



FAQ:

Q:Are you manufacturer or trading company?
A:We are manufacturer. Our factory is located in Shenzhen, warmly welcome to visit us.


Q:Can I have custom made structure and size of machine to adopt to my workplace?
A:Yes, sure.


Q:Can you supply CE certificate of machines to us?
A:Yes, we have them and we are glad to share with you.



Q:What kind of payment terms could you accept?
A:We accept bank transfer and letter of credit. For other payment, please check with us.


Q:How long is the delivery time?
A:It depends on which machine you order. Standard machine commonly is 30-60 days. Customized machine need longer time.
