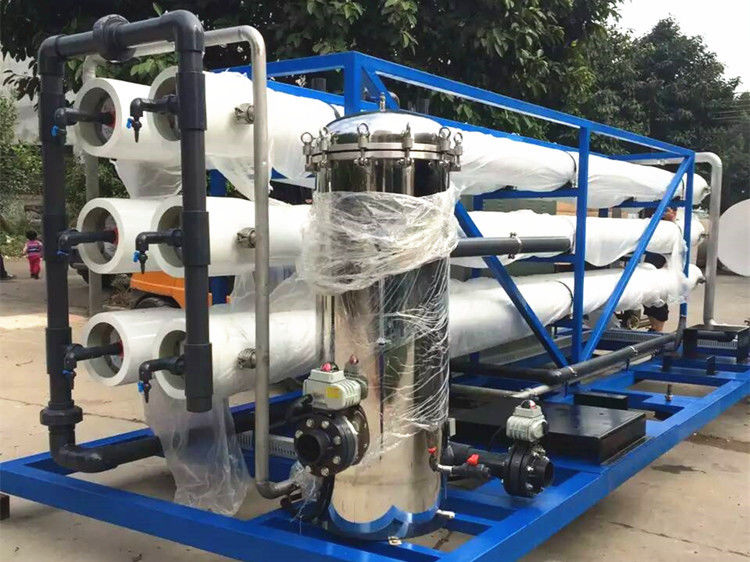

SS304 SS316 Industrial Reverse Osmosis System Salt Water Treatment Machine

I'm Online Chat Now

SS304 SS316 Industrial Reverse Osmosis System Salt Water Treatment Machine

SS304 SS316 Industrial Reverse Osmosis System Salt Water Treatment Machine
SS304 SS316 Industrial Reverse Osmosis System Salt Water Treatment Machine

Large Image :  SS304 SS316 Industrial Reverse Osmosis System Salt Water Treatment Machine

Product Details:

Place of Origin: China
Brand Name: MR
Certification: CE ISO GMP

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 pcs in single carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Product Name: Reverse Osmosis System Application: Filtration
RO Membrane: MR Water Yield: 0.5-30(m3 /h )
Working Water Tempterature (°C): 5-35 Minimum Water Inflow (m3 /h ): 2.0-40 (m3 /h)
Feature: Energy-saving Voltage: 380V /Customized
High Light:

SS 304 Industrial Reverse Osmosis System

,

ss316 Industrial Reverse Osmosis System

,

RO Salt Water Treatment Machine

SS304 SS316 Industrial Reverse Osmosis System Salt Water Treatment Machine



Salt Water Treatment Machine Reverse Osmosis Industrial Water Purification



How Do Reverse Osmosis Filter Systems Work & What Do They Do?

If you're looking for a water filter that will provide outstanding drinking water for your home or factory, Reverse Osmosis (RO) filtration is one of the most popular and best water filtration methods available. In simple terms, reverse osmosis works as water is forced across a semi-permeable membrane,leaving contaminants behind that are flushed down the drain. The clean drinking water collects in a holding tank.



Specification

Applicable Industries: Hotels, Manufacturing Plant, Machinery Repair Shops, HOME USE, Printing Shops, Construction works , Energy & Mining
Material: Standard Wooden, Stainless Teel
Warranty: 1 YEAR, One year
After-sales Service Provided: Video technical support, Free spare parts, Online support
Application: Water Purification
Capacity: 250L~10000L/Customized
Voltage: 380V /Customized
RO membrane: MR
Certification: CE ISO GMP
Water Yield: 0.5-30(m3 /h )
Working Water Tempterature (°C): 5-35
Minimum Water Inflow (m3 /h ): 2.0-40 (m3 /h )
Desalted Water (%) 98%


 Feature Of Industrial Reverse Osmosis System
(1). Occupy little space, easy to operate, wide application range;
(2). operation cost is low, acid and alkali consumption is low, no secondary pollution;
(3). Reverse osmosis desalting rate ≧ 99%, machine desalting rate ≧ 97%, 98% of organic and bacteria can be removed;
(4). Finished water under good electronic conductivity, one stage ≦10u s/cm, two stage around 2~3u s/cm, EDI ≦ 0.5u s/cm(based on raw water ≦ 300 u s/cm;
(5). High operation automation degree. It is unattended. The machine will automatically stop in case of no water. Timed flushing of front filtering materials by automatic controller. Automatic flushing of reverse osmosis film by IC. Online display of raw water and pure water electronic conductivity;
(6). Imported parts account for over 90%.


ROpure equipment technology is the most advanced and energy –saving ffectively membrane separation technology. It can ffectively remove dissolved in water ,salt ,colloid ,microbial organism (removal reaches as high as 97%-98%)under the osmotic pressure. The most widely used in the preparation of a desalination technology ,it is the separation of molecule ion from hundreds of organic matter .In the process of production ,increase water without the second investment .


Procedure:
Raw water - raw water tank (user self-provided) - raw water pump- multi-media filter- activated carbon filter- precision filter, the reverse osmosis device - pure water storage tank (user self-provided)

RO pure water system
1. Import parts over 90%,water conductivity<10μm/cm.
2. Meet GMP Standard.
3. Will be test before shipping.

Reverse Osmosis systems are used for
- Solvents used in the chemical material production process and cleaning process;
- Ultrapure materials and chemical solvents;
- Laboratory and pilot plant;
- Chemical materials used in electronic semiconductor, integrated circuit boards;
- Production, processing and purification of quartz, silicon materials ;
- High purified ink, inkjet of fax and printer, nano-ink; etc.



Water production
5T/H
8T/H
10T/H
20T/H
Raw water TDS
2000-3000ppm
1000-2000ppm
1000-2000ppm
1000-2000ppm
Pure water TDS
30-60ppm
30-60ppm
30-60ppm
30-60ppm
Application
Drinking
irrigation
cooling
cultivation




Material of reverse osmosis system?

We have different material for different application. Before choosing RO System and Type please contact with our Pro- fessional technical service.
1. Tanks: Fiber glass or Stainless Steel 304/316
2. Pipes: U-PVC or stainless steel filter
3. Frame: Stainless Steel 304 or 316
4. Filter Housing: U-PVC or SS304 or SS316
5. Memrane Housing: FRP or SS304 or SS316
Of course, every application is unique and we want to make sure you find the exact solution that you are looking for, so reach out to our professional and ask all the questions you have to find your industrial water filtration solution.
