Well Water Purification 380V 250L Industrial Ro System

I'm Online Chat Now

Well Water Purification 380V 250L Industrial Ro System

Well Water Purification 380V 250L Industrial Ro System
Well Water Purification 380V 250L Industrial Ro System

Large Image :  Well Water Purification 380V 250L Industrial Ro System

Product Details:

Place of Origin: China
Brand Name: MR
Certification: CE ISO GMP

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 pcs in single carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Product Name: Reverse Osmosis System Structure: Filtering Machine
Capacity: 250L~10000L/Customized Voltage: 380V /Customized
Water Yield: 0.5-30(m3 /h ) Working Water Tempterature (°C): 5-35
Material: Standard Wooden, Stainless Steel Applicable Industries: Hotels, Manufacturing Plant, Etc.
High Light:

250L Industrial Ro System

,

380Volt Industrial Ro System

,

250L Well Water Ro System

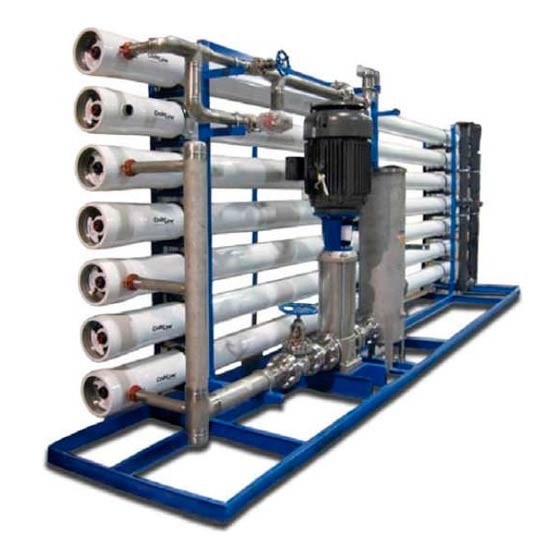

Well Water Purification 380V 250L Industrial Ro System



Well Water Purification Plant Purify Equipment Water Treatment Machine



Description Of RO System

Reverse Osmosis is a technology used to remove a large majority of pollutants from water by passing the water through a semi-permeable membranes under pressure.
The water passed through the Reverse Osmosis membranes through the high pressure pump leaves 95-99% of the dissolved salts on the membrane and these contaminants are expelled from the concentrated waste water out of the membrane. The pressure required here varies by the salt concentration of the feed water. The higher the polluting concentration in the feed water, the higher pressure is required to overcome the osmotic pressure. The design is made by determining the appropriate equipment and working parameters in the line of the feed water characterization and the desired purified water quality.



Specification

Applicable Industries: Hotels, Manufacturing Plant, Machinery Repair Shops, HOME USE, Printing Shops, Construction works , Energy & Mining
Material: Standard Wooden, Stainless Teel
Warranty: 1 YEAR, One year
After-sales Service Provided: Video technical support, Free spare parts, Online support
Application: Water Purification
Capacity: 250L~10000L/Customized
Voltage: 380V /Customized
RO membrane: MR
Certification: CE ISO GMP
Water Yield: 0.5-30(m3 /h )
Working Water Tempterature (°C): 5-35
Minimum Water Inflow (m3 /h ): 2.0-40 (m3 /h )
Desalted Water (%) 98%


Feature Of Industrial Reverse Osmosis System

1. Modularity design, compact structure.

2. System can choose thermal disinfection RO membrane and thermal disinfection EDI; the whole system can realize on-line hot water disinfection.

3. Double softener can achieve series connections by using the valve group and generation alternatively.

4. Feed water pump.1st stage high pressure pump and 2nd stage high pressure pump are all controlled by frequency.

5. System terminal water production uses a dual supply mode

6. Using the middle water storage tank as the buffer tank to realize cleaning on-line, dispensing with separate cleaning system.

7. Making stainless steel tube directly tensile bending in the pipeline as far as possible, avoid welding.

8. For the connection of the pipeline and the spare parts, it adopts the arc to protect the automatic welding track, and to ensure the welding quality

9. Control system: PLC automatic control technology

10. Recording mode: You can choose the paperless recorder for paperless records and also the paper record the key parameters in real time


S/N. Commodity name Application Remark
1 Raw water tank Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system Customer provide for themselves, because big size will result in expensive freight.
2 Raw water pump or called booster pump Provide needed pressure for every pretreatment filter We can provide CNP pumps or Grundfos pumps
3 Mechanical filter or called quartz sand filter or sand filter We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.
4 Activated carbon filter We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.
5 Water softener, demineralizer, or called Na+ exchanger Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling
6 Security filter or pp filter, or called PP sediment filter prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm
7 High pressure pump Provide needed working pressure for RO system, ensure production capacity of pure water. CNP pump, Grundfos optional
8 RO(reverse osmosis) system Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts. RO membranes USA Filmtec Dow


Procedure:
Raw water - raw water tank (user self-provided) - raw water pump- multi-media filter- activated carbon filter- precision filter, the reverse osmosis device - pure water storage tank (user self-provided)

RO pure water system
1. Import parts over 90%,water conductivity<10μm/cm.
2. Meet GMP Standard.
3. Will be test before shipping.

Reverse Osmosis systems are used for
• Production of fresh water from sea water,
• Increasing water quality in industrial enterprises,
• Obtaining water at the desired quality in industrial and drinking water,
• Preventing the formation of boiler stones in boilers,
• Regaining water in the recovery systems of wastewater,
• Obtaining feed-water of Ultra Purified water systems
• In sectors like Food, Textile, Glass, Automotive, Cosmetics, Pharmaceuticals, Iron and Steel.

Technical Parameter

Model

Capacity

(T/H)

Power

(KW)

Recovery (%)

One Stage Finished Water Conductivity

(μs/cm)

Tow Stage Finished Water Conductivity

(μs/cm)

EDI System Finished Water Conductivity

(μs/cm)

Raw Water Conductivity

(μs/cm)

RO-500 0.5 0.75 50 ≤10 2-3 ≤0.5 ≤300
RO-1000 1.0 2.2 75
RO-2000 2.0 4.0 75
RO-3000 3.0 5.5 75
RO-5000 5.0 7.5 75
RO-6000 6.0 7.5 75
RO-10000 10.0 11.0 75
RO-20000 20.0 15.0 75


Warranty: One year since the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by un-properly operation, then the Seller would offer the new parts for free.New Model High Efficient Tilting Vacuum Emulsifying Mixer Machine For Cosmetic
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
