Product Details:
Payment & Shipping Terms:
|
| Application: | Sewage Treatment,Waste Water Treatment,Wastewater Treatment,Domestic Sewage Or Industrial Wastewater Similar To Domestic Sewage | Capacity: | 10-5000 M3/d |
|---|---|---|---|
| Color: | Customerized | Function: | Water Purification Plant,hospital,wastewater(sewage) Treatment Plant,animal Farm Etc |
| Membrane Material: | PVDF (linning PET) | Size: | Customized Size |
| Certification: | ISO9001,CE,ISO9001;SGS;BV;National Patent | Name: | Compact Hospital Wastewater Treatment By Membrane Bioreactor MBR,Mineral Water Treatment Plant,Membrane Bioreactor |
| Principle: | Biochemical Treatment+Membrane Sepapration | Technology: | Combing Membrane Separation Technique With Activited Sludge Method |
| Pore Size: | 0.1-0.4um | Service Life: | 5-10 Years |
| High Light: | mbr bioreactor,hollow fiber mbr |
||

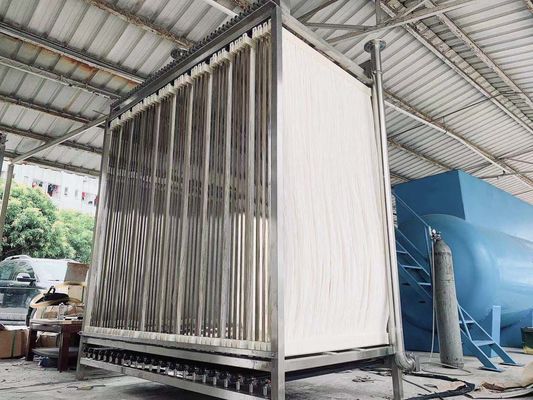

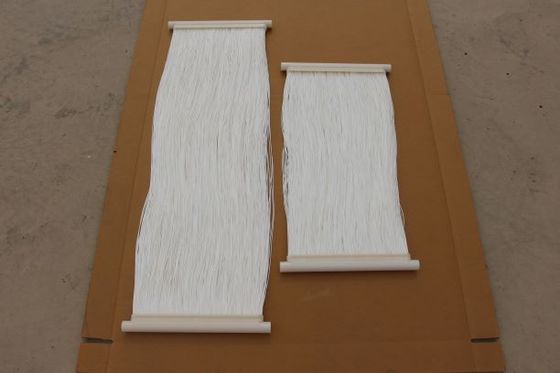

PVDF Hollow Fiber Membrane Bioreactor For Industrial Wastewater Treatment
Ceramic filtration membrane is an alternative core material for membrane separation technology. Ceramic filtration membranes are made of alumina, zirconia, titanium oxide, monox, kaolin and some other main raw materials to form support with porous structure, then functional membrane is prepared by surface coating process, and finally fired at high temperature.
Size H*L*W( mm): 1300*1250*30
Membrane area: 22.4m²
Silk size: 2.5mm
Pore size: 0.2mm
Flux: 10-30 LM/H
Supporting column: SUS

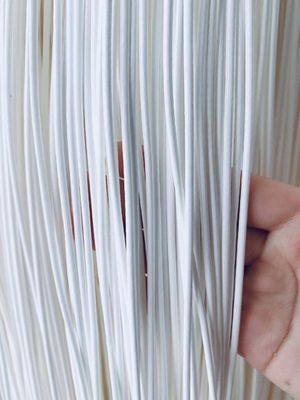

Hollow fiber material: PVDF
Working temperature: 10-40 ℃
PH range: 2-12
Urban sewage treatment, residential, hotel sewage treatment and water reuse
Food waste water, slaughterhouse wastewater, brewery wastewater treatment
Pharmaceutical, fermentation, chemical, printing and dyeing, petrochemical wastewater treatment
The modification, upgrading and expansion of existing biochemical sewage treatment system
★ Material excellent - high corrosion resistance, high strength, heat resistance, suitable for solvent or oil, and suit for many kinds of drainage.
★ High flux, the membrane is with high flux, low working pressure and small floor space.
★ Long service life- the ceramic filter membrane system has a longer service life compared with the hollow fiber membrane, so the full life cost is the lowest.
★Energy saving - the membrane surface is not easy to stain, and the replacement structure design.
★ Space saving-High throughput, small area.
★Easy maintenance-Membrane fouling is easy to recover. Air wash, water back wash, medicine washing.
