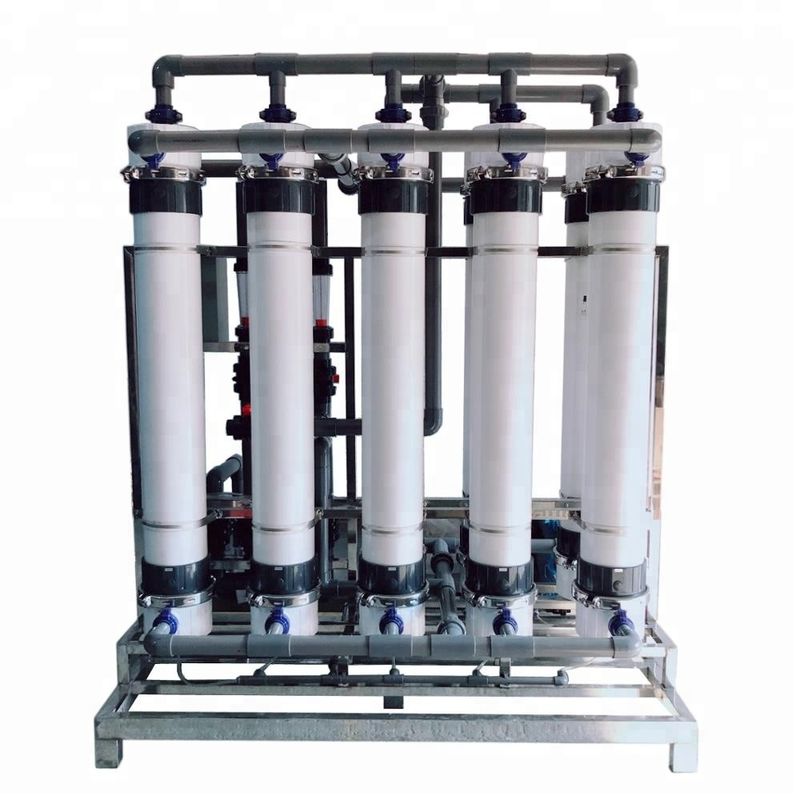

2t/H 8kw 2000lph Ultrafiltration Membrane System For Water Purifier

I'm Online Chat Now

2t/H 8kw 2000lph Ultrafiltration Membrane System For Water Purifier

2t/H 8kw 2000lph Ultrafiltration Membrane System For Water Purifier
2t/H 8kw 2000lph Ultrafiltration Membrane System For Water Purifier

Large Image :  2t/H 8kw 2000lph Ultrafiltration Membrane System For Water Purifier

Product Details:

Place of Origin: Huangpu, China
Brand Name: Chunke
Certification: CE

Payment & Shipping Terms:

Price: Negotiable
Payment Terms: L/C, T/T,
Detailed Product Description
Usage: Environmental Protection, Chemical Industry Brand Name: Chunke
Materies: Stainless Steel Color: Silver
Productivity: 2t/H Motor Power: 8kw
Specification: CE HS Code: 8421219990
Capacity: 45tph
High Light:

2000lph Ultrafiltration Membrane System


8kw Ultrafiltration Membrane System


2t/h UF Water Purifier Membrane

2000LPH Ultrafiltration Membrane System For Water Reuse Uf Water Purifier

UF membrane


The molecular weight range of UF ultrafiltration membrane is 1000-200000 Dalton. The ultrafiltration membrane can intercept the impurities


(such as protein, pigment and polysaccharide) through the target products.It can retain the target product, through small molecular impurities


(inorganic salt, small molecular pigment, monosaccharide, ash, etc.) and water, can also separate the target product of different molecular


weight, so as to replace the traditional activated carbon decolorization, resin impurity removal, crystallization extraction and other purification


process, achieve the purpose of decolorization, impurity removal and product classification.UF ultrafiltration membrane, UF ultrafiltration


membrane has become a high and new technology of concentration and separation, and is most widely used in the water treatment industry


UF system technology introduction

UF ultrafiltration membrane has become a high and new technology of concentration and separation, which is most widely used in water


treatment industry.It is to use the pressure difference to promote the membrane separation process, the solution in the raw material through the


high pressure through the membrane element, at this time to achieve the purpose of concentration and separation and solution purification.The


whole process of the equipment will not cause any pollution, so it is favored by all walks of life.

UF system running features

1. The filter membrane will not undergo phase change during operation, and can be operated at room temperature or low pressure, thus its operation energy consumption is low;

2. The membrane element will not change any substance in the process of concentration and separation and will not cause secondary pollution;

3. Substances with different molecular weights can be separated in different grades;

4. No impurities will fall off during the operation of the ultrafiltration membrane to ensure the purity of the ultrafiltrate;

5. The ultrafiltration membrane is characterized by selective separation and can retain mineral elements beneficial to human body;

UF system application domain editing

1. Electronic industry: semiconductor industry ultra-pure water equipment, integrated circuit cleaning water treatment equipment;

2. Pharmaceutical industry: medical pure water, drug concentration and separation;

3. Water treatment project: preparation of purified water, purification of drinking water, reverse osmosis device;

4. Food industry: concentrate and clarify juice, concentrate and separate protein;


5. Wastewater treatment engineering: industrial wastewater, municipal wastewater treatment and reuse, etc.;

These industries are widely used in the application of ultrafiltration membrane industry, there are many enterprises in the production process


using ultrafiltration membrane technology.

45T/H Water Treatment RO Plant Product description

a . Continuously water purifing , without generation , lower labor intensity .
b . 97%-99% desalination with original import reverse osmosis membrane ,
c . 98% organic mater and bacteria wiped off , over 98 heat source ,
d . Online conductivity monitoring , ensure good effluent .
e . PLC microcomputer monitoring , timing flush reverse osmosis membrane to ensure high quality purified water

Items Permissible Value Probably Consequence of Excessive Standard Improvement Suggestions
Suspended solids Tubidity <1NTU Sludge ,colloid pollution Flocculation and filtration
SDI15 <5
Metal oxides Fe ( mg/L) <0.05 Iron Pollution Oxidation
Mn (mg/L) <0.05
Scale forming matter CaCO3 LSI<0 Concentrated water side does not permit scaling Decrease recovery rate , PH value , or add scale inhibitor
Other insoluble salt /
Organics Oil 0 Organics and oil Air
TOC (mg/L) <10 Organics pollution Activated carbon adsorption , filtration
CODcr (mg/L) <10
BOD5 (mg/L) <5
Si (mg/L) <20 Colloid pollution
PH 3-10 Too low or too high PH will accelerate the aging speed of membrane Regulation of Acid-base
Temperature 5-45°C Low temperature will easily produce scaling of undissolved salt High temperature will accelerate the aging speed of membrane Heat exhanger
Oxidizer Residual chlorine (mg/L) <0.1 Membrane system will be oxidized Reductant or aclivated carbon adsorption
Ozone and others 0

45T/H Water Treatment RO Plant pictures:

Machine Part :

Multi-media filter

The multi-media filter is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc, ensuring the filtered water's TDS is less than 5. This process will reduce the load on the back-end fine filters.

Active Carbon filter

The active-carbon filter is the key device, commonly used for removal of organic substance and
heavy metal element, suspended solids, residual chlorine and etc. It can effectively reduce the level of COD and improve the taste of water. The system is a pressure filter. In the filter, the quartz and Coconut shell active carbon bed are employed. The activated carbon is equipped with vent valving at the highest point and a drain connection at the lowest point. The internal systems and components for each tank is constructed of frp material.

Water softener filter

Ion exchange resin is used in water softening system for Ca+,Mg+ and other cation exchange . To prevent undissolved salt from depositing in the surface of reverse osmosis membrane ,the resin which ensures well permeable ability of membrane module after it works a long time and extends lifetime of membranes , enhances quality stability of ro purified water . Water softener is vertical structure which use frp material , produced as vessel standard, designed pressure for 8kg/cm2 that valve is used for full-automatic salt regeneration .

Security filter ( Cartridge Filters)

The security filter is most commonly used for treat water. The whole system adopts one set of stainless filter. There are 3 pieces of polypropylene in every 5μ filter cartridges, filtering the vast majority of particles in the water, which eases the load of RO membrane. This process of filtration benefits to the filter cartridge and prolongs its lifetime in the system.
This apparatus contains filtration component and stainless support layers. The support layer is made of stainless steel 304, with the advantages of compact structure, beautiful shape, high flux, good filtration accuracy and etc. This apparatus is fitted with air drain valve and bottom air drain valve and side drain valve.

Reverse Osmosis Modules( RO)

RO system is key part for the water treatment system, which is widely used to make the pure water and drinking water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The result is that the solute such as iron, Virus, bacteria and solids is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.

Packing and shipping
Packed in carton case and wooden box.
Delivery: Negotiation

About our company

Guangzhou Chunke Environmental Technology Co., Ltd is a scientific enterpruise, which is specialized in water treatment equipment and accessories of research and development, production, sales and service.
Production and management: Cartridge filter, bag filter, mechanical filter, lon Exchanger, Imitation FRP barrels, ozone mixing tower, sterile water tank, stainless steel membrane shells, hollow-fiber mambrane, ultraviolet radiation sterialization device, ozone generator, and water treatment equipment and so on.
