Uf Membrane Industrial Reverse Osmosis Water System For Brackish Water

I'm Online Chat Now

Uf Membrane Industrial Reverse Osmosis Water System For Brackish Water

Uf Membrane Industrial Reverse Osmosis Water System For Brackish Water
Uf Membrane Industrial Reverse Osmosis Water System For Brackish Water

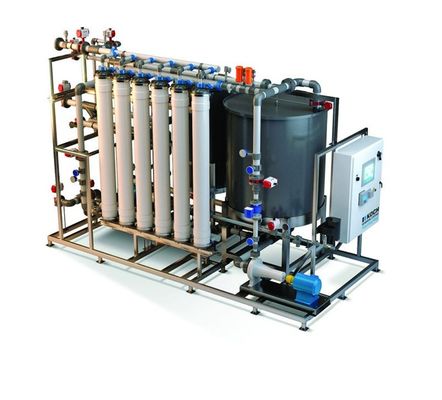

Large Image :  Uf Membrane Industrial Reverse Osmosis Water System For Brackish Water

Product Details:

Place of Origin: China
Brand Name: MR
Certification: CE ISO GMP

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 pcs in single carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Product Name: Ultrafiltration Unit Type: Ultrafiltration
RO Membrane: MR System Recovery: 60%-70%
Power: 24KW System Working Voltage: 110V / 220V / 240V/380V/450V
Use: Water Treatment Technologies Pretreatment: Stainless Steel Or FRP Tank
High Light:

450V Industrial Reverse Osmosis Water System

,

ISO Industrial Reverse Osmosis Water System

,

brackish water Reverse Osmosis Water System

Uf Membrane Industrial Reverse Osmosis Water System For Brackish Water



Stainless Steel Uf Membrane Industrial Reverse Osmosis Water System





Application Uf Membrane Filter Ultrafiltration Water Purification System​



Description Of Ultrafiltration System

Reverse Osmosis(RO) is a process that uses semi-permeable spiral wound membranes to separate and remove dissolved solids, organic,pyrogens,submicron colloidal matter,color,nitrate and bacteria from water. Feed water is delivered under pressure through the semi-permeable membrane,where water permeates the minute pores of the membrane and is delivered as purified water called permeate water.Impurities in the water are concentrated in the reject stream and flushed to the drain is called concentrate water.


Specification

Raw water test report
seawater and brackish water
Material
SUS 304/ 316/ FRP
RO Purified water capacity
70T UF+100T RO
System recovery
60%-70%
Desalination ratio
97.3%-98%
System working Voltage/Power
110V / 220V / 240V/380V/450V 24KW
Feed water Capacity
70T UF+100T RO
Outlet Purified water standard
TDS<1000PPM ; TDS<2PPM for drinking standard


Feature Of Industrial Ultrafiltration System:

Minimum pumping energy required, thus energy saving
Chemical resistance, wide PH ranges
Back-washable
Easy to operate & maintenance
Low investment cost
No contaminant residue caused by chemical reaction
Recovery ratio up to 98%

Parts are in Ultrafiltration(UF)system
1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration.
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water.
4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water.
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water.
6. Security filter: further filtration, protection of later UF membrane.
7. High pressure pump: provide enough pressure for UF (ultra filtration) system.
8. UF (ultra filtration) unit: the core part of miniral water equipment, the production of mineral water.
9. mineral water tank: storage mineral water, can change the size of the water tank, after the below process, The water result is pure enough for different application.


Ultrafiltration System
1. Import parts over 90%,water conductivity<10μm/cm.
2. Meet GMP Standard.
3. Will be test before shipping.



Applications:

The power industry:boiler water supply


The electronics industry:the semiconductor industry ultrapure water,cleaning water IC


Food industry:prescription water,water production;tea,fruit juice,vegetable juice and plants the

thermosensitive material extranction and enrichment


Beverage industry:Formulation of water,production water,wash water


The pharmsceutical industry: process water,reagent water,wash water,water for injection,the

drug concentration separation


The chemical industry:the production of water,waste water treatment,the concentration of

valuable material separation


Drinking water project:preparation of pure water,drinking water purification


Petrochemicals:oilfield injection of water,wastewater depth petrochemical processing


Desalination:islands,coastal water areas,ships,such sa oil field water production for domestic

Use





What is UF(Ultra filtration) in general?
Ultra filtration (abbreviate UF)water treatment system is a process of separating suspended macromolecules from wastewater by using membreane and pressure differential. The membreane used in the process is a selectivelypermeable membrane which resists survival of macromolecules above a certain size when passing through,and it's in this manner, it becomes an expert in retaining macromolecules, colloids, microorganisms and pyrogens and it is commonly applied to water purification system.



Warranty: One year since the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by un-properly operation, then the Seller would offer the new parts for free.New Model High Efficient Tilting Vacuum Emulsifying Mixer Machine For Cosmetic
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
