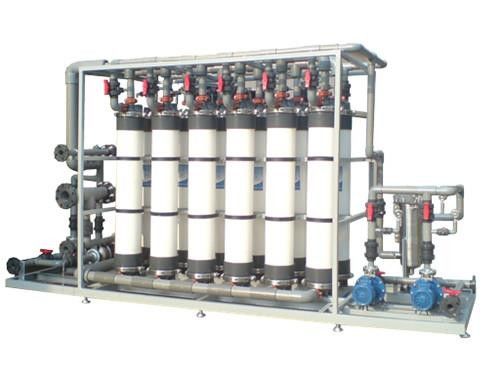

24KW Uf Filtration System Customized Water Filtration Equipment

I'm Online Chat Now

24KW Uf Filtration System Customized Water Filtration Equipment

24KW Uf Filtration System Customized Water Filtration Equipment
24KW Uf Filtration System Customized Water Filtration Equipment

Large Image :  24KW Uf Filtration System Customized Water Filtration Equipment

Product Details:

Place of Origin: China
Brand Name: MR
Certification: CE ISO GMP

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 pcs in single carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T
Detailed Product Description
Product Name: Ultrafiltration Unit Type: Ultrafiltration
RO Membrane: MR Power: 24KW
System Recovery: 60%-70% System Working Voltage: 110V / 220V / 240V/380V/450V
Use: Water Treatment Technologies Pretreatment: Stainless Steel Or FRP Tank
High Light:

24KW Uf Filtration System

,

seawater Uf Filtration System

,

Uf Water Filtration Equipment

24KW Uf Filtration System Customized Water Filtration Equipment



Brackish Water SUS 316 FRP 380V Ultrafiltration System



380V Ultrafiltration Systems Water Treatment / Ultra Filtration Membrane Device

Description Of Ultrafiltration System



Ultra-filtration technology is a pressure driven membrane separation process that removes suspended or particulate matters (including colloids & silt) from water. It serves as a pretreatment for surface water, sea water and biologically-treated municipal effluent before reverse osmosis and other membrane systems. This solution is far more reliable than a conventional multimedia filter. In addition to superior turbidity removal, UF membranes efficiently remove bacteria.


1. Ultrafiltration(UF): filter accuracy up to 0.01μm, completely remove the bacteria, parasites, suspended sediment and other pollutants in the water,effectively remove the algae, the solubility of chlorine and harmful heavy metals(lead, cadmium, chromium, etc.).
2. 99.999% remove the bacteria, pesticide residues, rust, red worms, parasites, sediment, dust, chlorine (chloroform) and other impurities in your tap water.
3. High efficient of filter bacteria, rust, red worm, residual chlorine.
4. Turns ordinary water into healthier, great-tasting alkaline and ionized drinking water.


Specification

Raw water test report
seawater and brackish water
Material
SUS 304/ 316/ FRP
RO Purified water capacity
70T UF+100T RO
System recovery
60%-70%
Desalination ratio
97.3%-98%
System working Voltage/Power
110V / 220V / 240V/380V/450V 24KW
Feed water Capacity
70T UF+100T RO
Outlet Purified water standard
TDS<1000PPM ; TDS<2PPM for drinking standard


Feature Of Industrial Ultrafiltration System

1) ultra filtration (UF) systems is small footprints and easy operation
2) High degree of automation of ultra filtration (UF) systems
3) Different Molecular substances can be classified and treated
4) UF mineral water treatment is applicable for different kinds of water quality and can be widely used

Parts are in Ultrafiltration(UF)system
1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate
2. Booster pump: equipped with a stainless steel pump, to provide sufficient pressure for subsequent filtration.
3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water.
4. Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water.
5. Water softener filter: mainly remove the calcium and magnesium in tap water, reduce the hardness of water.
6. Security filter: further filtration, protection of later UF membrane.
7. High pressure pump: provide enough pressure for UF (ultra filtration) system.
8. UF (ultra filtration) unit: the core part of miniral water equipment, the production of mineral water.
9. mineral water tank: storage mineral water, can change the size of the water tank, after the below process, The water result is pure enough for different application.


Ultrafiltration System
1. Import parts over 90%,water conductivity<10μm/cm.
2. Meet GMP Standard.
3. Will be test before shipping.

Ultrafiltration System are used for

  1. Mineral water treatment plant water filtration application.
  2. waste water Reuse applciation
  3. liquid concentration, and filtration.
  4. Eliminate the Macromolecular organic matter to reduce the TOC, BOD, COD
  5. Reduce the suspendid solid, sand, and other suspendid solid.
  6. Eliminate the microorganism, such as the batteria.

What is UF(Ultra filtration) in general?
Ultra filtration (abbreviate UF)water treatment system is a process of separating suspended macromolecules from wastewater by using membreane and pressure differential. The membreane used in the process is a selectivelypermeable membrane which resists survival of macromolecules above a certain size when passing through,and it's in this manner, it becomes an expert in retaining macromolecules, colloids, microorganisms and pyrogens and it is commonly applied to water purification system.



Warranty: One year since the date of installation. If there is any wearing part be broken within the warranty and isn’t caused by un-properly operation, then the Seller would offer the new parts for free.New Model High Efficient Tilting Vacuum Emulsifying Mixer Machine For Cosmetic
Inspection: The buyer will do the machine inspection when the machines are ready.
Machine Installation or Fixing: If Buyer requires Seller’s engineer to install or fix the machine locally in due course, the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
